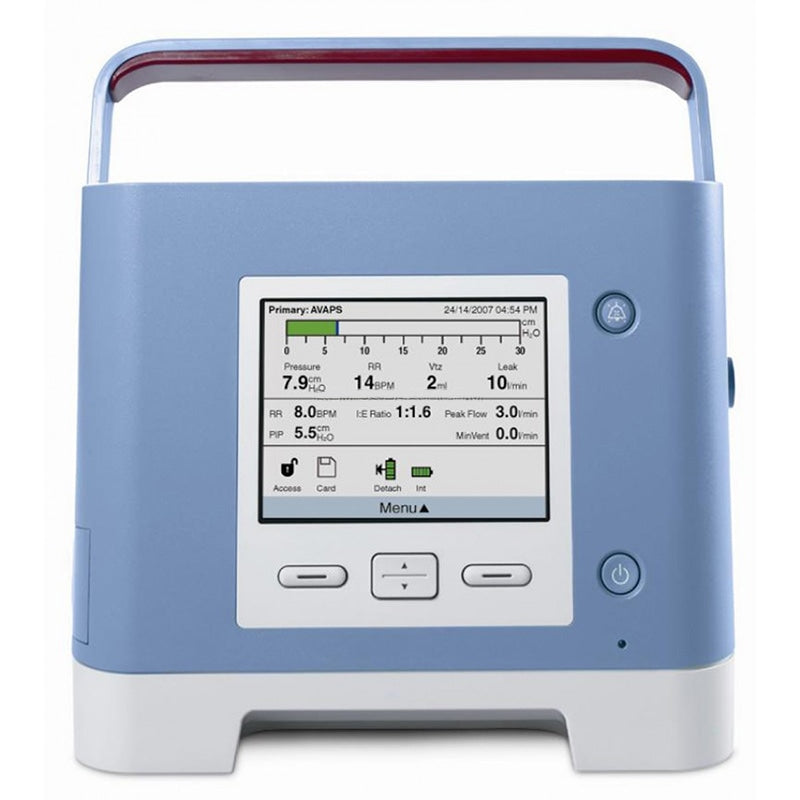

Trilogy 100 Ventilator Rental

Specifications

Dimensions and weight

Dimensions	16.68 cm L x 28.45 cm W x 23.52 cm H (6.6" L x 11.2" W x 9.3" H)
Weight	5 kg (11 lb)

Alarms

Apnea rate	Off; 10 to 60 s
Circuit disconnect	Off; 5 to 60 s
High tidal volume	Off; 50 to 2000 ml
Low tidal volume	Off; 40 to 2000 ml
High minute ventilation	Off; 1.0 to 99 l/min
Low minute ventilations	Off; 0.2 to 99 l/min
High respiratory rate	Off; 4 to 80 BPM
Low respiratory rate
Low respiratory rate	Off; 4 to 80 BPM

Measured patient parameters

Respiratory rate	0 to 80 BPM
Minute ventilation	0 to 99 l/min
Leak rate	0 to 2000 l/min
Vte/Vti	0 to 2000 ml
Peak inspiratory flow	0 to 2000 l/min
Peak inspiratory pressure	0 to 99 cm H₂O
Mean airway pressure	0 to 99 cm H₂O
% Patient triggered breaths	0 to 100 %
I:E ratio	9.9:1 to 1:9.9

Controls

Circuit types	Active with PAP; passive
Ventilation types	Pressure and Volume
Volume modes	AC; SIMV (w/PS); CV; AC-MPV
Pressure modes	CPAP; S; S/T; T; PC-SIMV (w/PS);PC-MVP; AVAPS-AE
IPAP	4 to 50 cm H₂O
Pressure	4 to 50 cm H₂O
PEEP/EPAP for active circuits	0 to 25 cm H₂O
PEEP/EPAP for passive circuits	4 to 50 cm H₂O
CPAP for passive circuits	4 to 20 cm H₂O
PEEP for active circuits	0 to 25 cm H₂O
PEEP for passive circuits	4 to 25 cm H₂O
PEEP for passive circuits	4 to 20 cm H₂O
Pressure support differential	0 to 40 cm H₂O

Controls

Tidal volume	50 to 2000 ml
Breath rate	0 to 60 for AC mode; 1 to 60 BPM for all other modes
Inspiratory time	0.3 to 5.0 s
Rise time	1 to 6
Ramp start pressure	0 to 25 cm H2O for active circuits; 4 to 25 cm H2O for passive circuits; 4 to 19 cm H2O in CPAP cm H₂O
Ramp length	Off; 5 to 45 minute(s)
Flex	Off; 1 to 3
Flow trigger sensitivity	1 to 9 l/min
Flow cycle	10 to 90 %
Apnea rate	4 to 60 BPM
Apnea rate	Off; 10 to 60 sec
