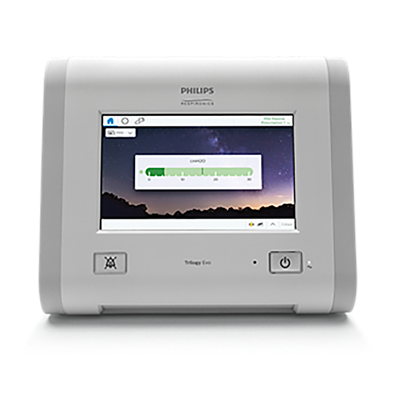

Philips Trilogy Evo Ventilator Rental

Transition to the future today with the next generation of Philips ventilators.

The Trilogy EVO Ventilator Rental delivers enhanced performance in noninvasive (NIV) and invasive (IV) ventilation, so patients can be treated with a single device throughout their hospital stay, regardless of changing conditions.

Trilogy EVO Rental is designed to stay with your patients, saving your staff time and effort as patients move between hospital departments.

Specifications

Alarms

Inspiratory Pressure	1 - 90 cmH₂O
Tidal Volume	OFF, 10 - 2000 ml
Minute Ventilation	OFF, 0.2 - 30 L/min
Respiratory Rate	OFF, 1 - 90 BPM
Circuit Disconnection	OFF, 5 - 60 sec
Apnea Interval	5 - 60 sec

Oxygen

Low flow	0 to 30 l/min; maximum 10 psi
High pressure	280 to 600 kPa (41 to 87 psi)

Controls

AVAPS with passive circuit	PSV, S/T, and A/C-PC modes only
Tidal volume	35 - 2000 ml on Dual Limb and Active Flow circuits, 50 - 2000 ml on passive and active PAP circuits
Breath rate	0 - 80 BPM
PEEP	0 - 35 cmH₂0 for active circuits 3 - 25 cmH₂0 for passive circuits
EPAP/CPAP	3 - 25 cmH₂0
IPAP	3 - 60 cmH₂0
Pressure support/control	0 - 60 cmH₂0
Inspiratory time	0.3 - 5.0 sec
Rise time	0-6 sec
Triggering and cycling	Off, Auto-Trak, Sensitive Auto-Trak, and Flow Trigger
Flow trigger sensitivity	0.5 - 9 l/min
Flow cycle sensitivity	10% - 90% of peak flow
Flow pattern	Square, Ramp
FiO₂	21% - 100%
Inspiratory time min/max	0.3 - 3.0 sec
Backup ventilation	ON - OFF

Standards

General	IEC 60601-1-1 Med electrical equip. Part 1-1: Gen. requirements for safety
Collateral	IEC 60601-1-11 Home Health Care Environment acc. to transit-operable usage
Particular	ISO 80601-2-72 Part 2-72 ISO 80601-2-12 Part 2-12 ISO 80601-2-61 Part 2-61 ISO 80601-2-55 Part 2-55
Wireless communication	Bluetooth v4.1, ISO/IEC 18092:2013, 21481 ed 2.0, 14443 ed 2.0, WLAN Std: IEEE 802.11 (2012) b/g/n

Ventilation modes

A/C-PC	Assist control (pressure control)
A/C-VC	Assist control (volume control)
CPAP	Continuous positive airway pressure
PSV	Pressure support ventilation
S/T	Spontaneous/timed ventilation
SIMV-PC	Synchronized intermittent mandatory ventilation (pressure control)
SIMV-VC	Synchronized intermittent mandatory ventilation (volume control)

Electrical

AC input voltage	100V - 240V, 50/60 Hz, 1.7 - 0.6A
DC input voltage	12/24V 6.5A
Li-ion batteries	Internal/hot-swappable Li-ion batteries: 7.5 hours each nominal total run time (per IEC 80601-2-72)
Charge time for battery	Charge time for detachable & internal battery: from 0% to 80%: 2.5 hours from 0% to 100%: 3.5 hours

Environmental

Operating Conditions	0°C to 40°C, 5%-90% RH (non-condensing), Atm.Pressure, 62 to 106 kPa, Altitude: -1261 to 12,971 ft
Transient operating temp	-20°C to 50°C
Storage temperature	Temperature: -25°C to 70°C Relative humidity: 5% to 93% RH, non-condensing

Physical

Weight	6.3 Kg (13.8 lbs) with hot-swappable battery
Size	19.3 cm D x 28.6 cm W x 24.5 cm H (7.6” D x 11.25” W x 9.65” H)
Screen dimensions	20.32 cm (8")
Ingress protection	IP22: protection against finger-sized objects & dripping water when tilted up to 15 degrees.

Measured and displayed patient parameters

Tidal volume (Vti or Vte)	0 to 2000 ml
Minute ventilation (MinVent)	0 to 30 l/min
Leak	0 to 200 l/min
Respiratory rate (RR)	0 to 90 BPM
Peak inspiratory flow PIF	0 to 200 l/min
Peak inspiratory pressure PIP	0 to 90 cmH₂O
Mean airway pressure	0 to 90 cmH₂O
Spontaneous triggered breaths	0 to 100 %
I:E ratio	9.9:1 to 1:9.9
Dynamic compliance (Dyn C)	1 to 100 ml/cmH₂O
Dynamic resistance (Dyn R)	5 to 200 cmH₂O/l/sec
Dynamic plateau pressure	0 to 90 cmH₂O
Auto-PEEP	0 to 20 cmH₂O
FiO₂ with FiO₂ sensor	21 to 100 %
SpO₂ with pulse oximeter	0 to 100 %
Pulse rate with pulse oximeter	18 to 321 bpm
EtCO₂ with CO₂ accessory	0 to 150 mmHg
